- Product Code: VSSSL0100
- Item Code: SSSL0101
- Model No: VSSL1

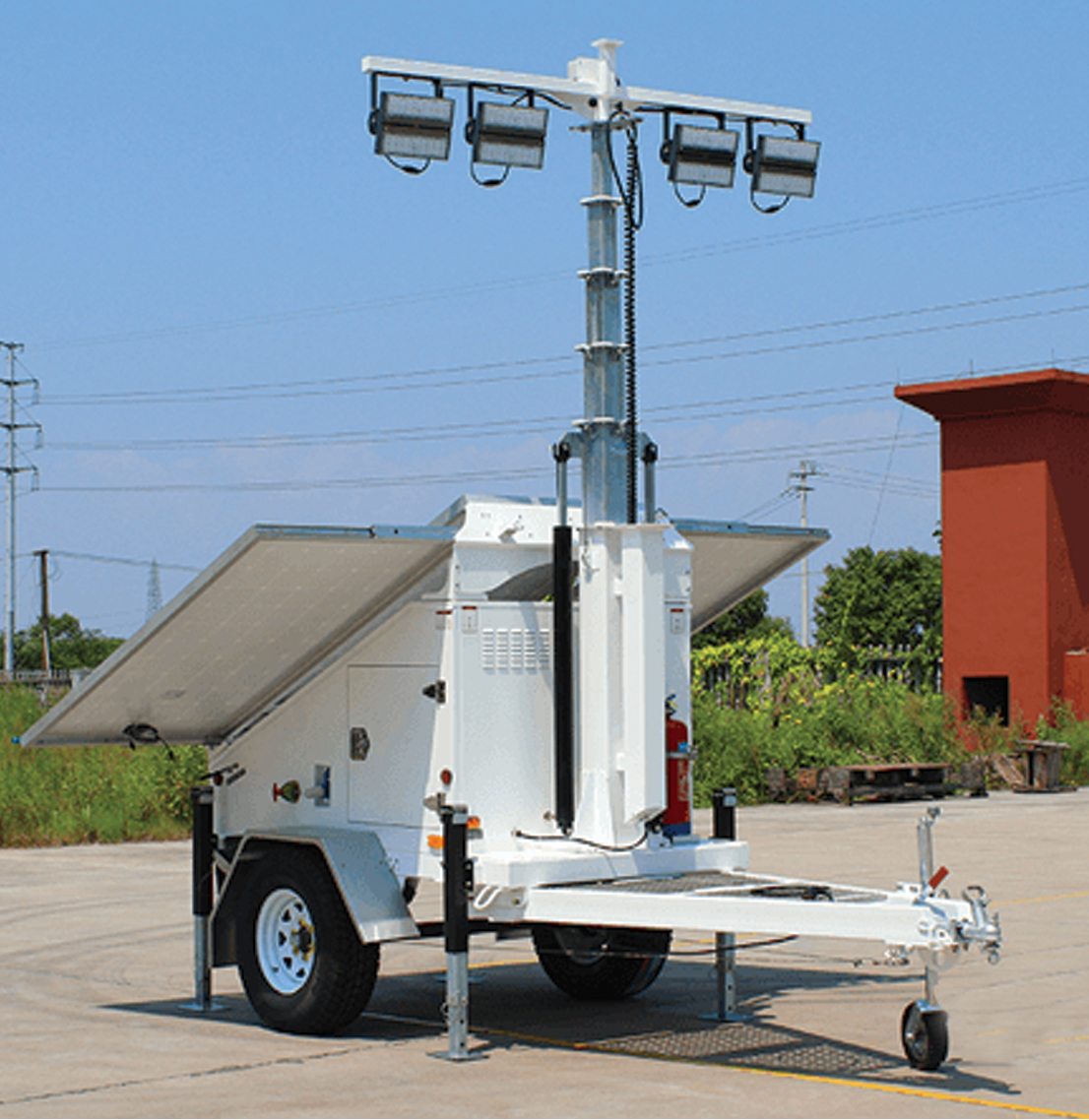

Solar Light Tower
- 3*325W solar panels
- 4*200Ah/6*150Ah/6*200Ah gel batteries, DC24V system
- 4*50W/4*100W/6*100W LED light
- Optional 6 to 9 meters manual/electric/ hydraulic mast
- Single axle solar light tower with India/Australia/Europe/North America standard
| Tower Dimensions | |
|---|---|
| Length | 4040mm |
| Width | 1780mm |
| Height | 2750mm |
| Weight | 1450kg |
| Trailer Details | |
|---|---|
| Trailer Type | Single Axle |
| Tire and Rim Size | 15” |
| Stabalizer Support | 4x Manual |
| Drawbar | A Frame |
| Tow Hitch | 50mm Ball/70mm Ring |
| Mud Guard | Special Design |
| Backup Generator | Optional |
| Working Temp(oC) | -35~60 |
| Lighting Fixture Details | |
|---|---|
| Type of Lights | LED |
| Lamp Wattage | 60/100 W |
| No of Lights | 4/6 |
| Light Output (w) | 240/400/600 |
| Lumens per Watt | 150 |
| Working Life Time(hr) | 50000 |
| Light Bar Rotation | 355 Degrees |
| Light Bar Tilt | Optional |
| Mast Raise/Extension | Manual/Electric/Hydraullic |
| Mast Height(m) | Optional |
| Coil Cable | 4^4sqmm/4^6sqmm |
| Wind Rating Speed | 100km/h |
Selection Table: Example: S35-LED{400}-M{EM}-B{900}-G{D5}-T{US/MB}
| Code | Solar Panel(w) | LED(w) | Mast(m) | Battery(Ah) | Generator(kW) | Trailer Standard | ||
|---|---|---|---|---|---|---|---|---|
| S35 |
3*325 W (Fixed Angle) |
200(4*50 W) 400(4*100 W) 600(6*100 W) |
MM (Manual mast) |
6 | B800(4*200 Ah) B900(6*150Ah) |
G3(gasoline 3kW) D3(diesel 3kW) D5(Diesel 5kW) |
AU/ US/ EU | EB(eletric brake) MB(Mechanical brake) |
| 7.5 | ||||||||
| 9 | ||||||||
|
EM (Electric mast) |
6 | |||||||
| 7.5 | ||||||||
| 9 | ||||||||
|
HM (Hydraulic mast) |
6 | B800(4*200 Ah) B900(6*150Ah) B1200(6*200Ah) |
N/A | |||||
| 7.5 | ||||||||
| 9 | ||||||||
